Relying on the technical knowledge of experts in this field and the experience of setting up and upgrading ESD systems, this company is able to upgrade HIMA HIQUAD H51Q systems to HIQUAD X.
that the upgrade operation is performed with the lowest cost and only the replacement of the control rack part, and the rest of the hardware remains without major changes, and the software is upgraded to the SILworX software.

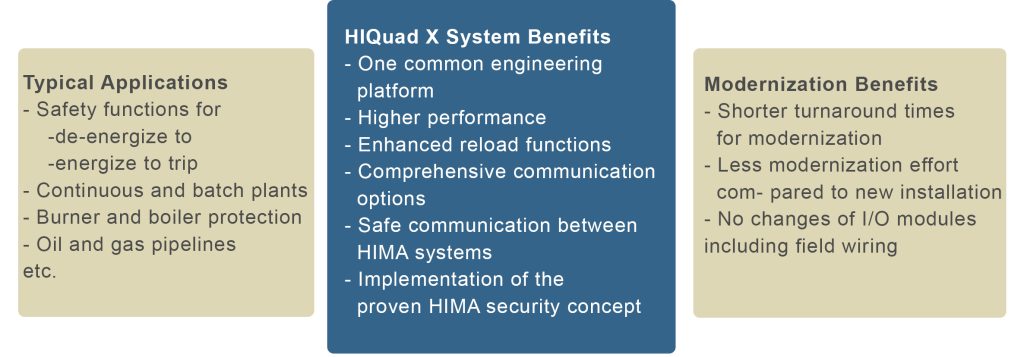

HIMA customers who already use HIQuad systems benefit from the upgrade to HIQuad X with short plant outages and considerably reduced costs when compared to new installations. The I/O modules including field wiring can continue to be used. This enables users to make savings in terms of investment and costs for testing and documentation.

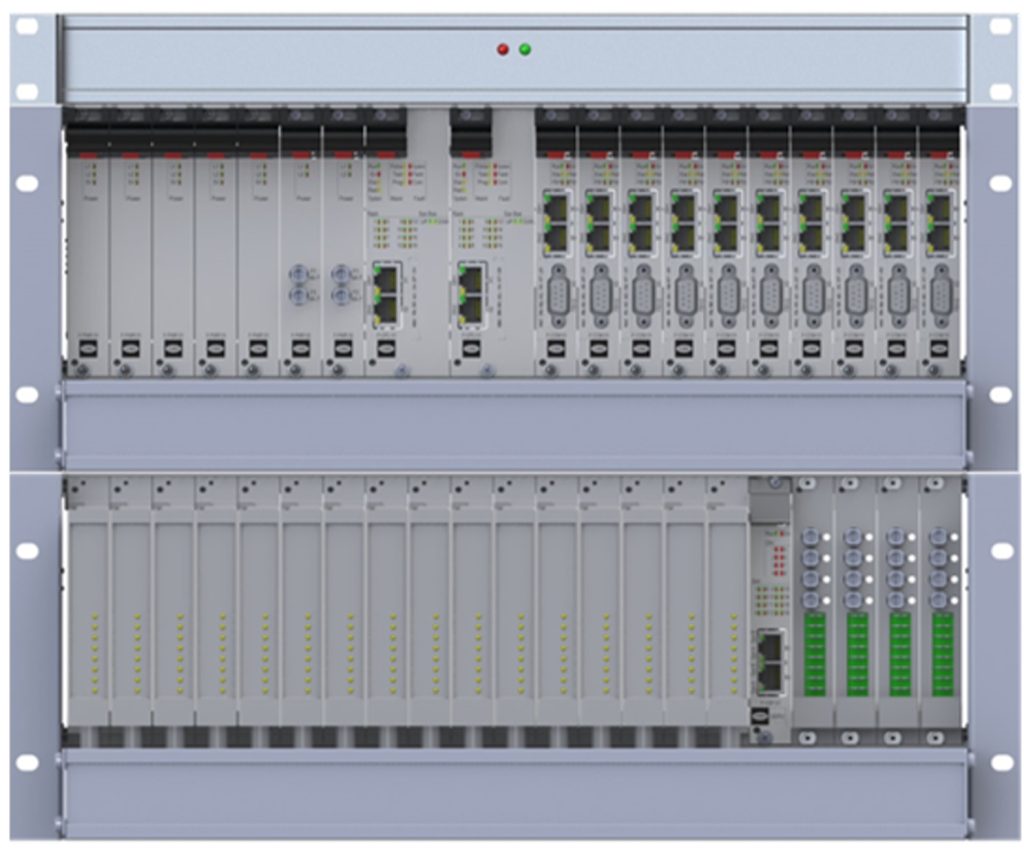

HIQuad X is a programmable electronic safety system made by HIMA . The flexible and scalable system family is a further development of HIQuad, which has been in use within various applications in the process industries for over 30 years. The modernization combines tried-and-tested HIQuad I٫O technology with the high-availability and high-performance HIMax system technology. HIQuad X is programmable with SILworX, the HIMA engineering tool. HIQuad X safety systems are installed if restrictive safety requirements must be fulfilled – without any compromises on system availability. The safety PLC can be used on a centralized as well as decentralized basis. A huge variety of I٫O modules can be used – including intrinsically safe SIL 3 modules.
• Two systems : H 51 X and H41X
• Common usage of the same modules for H 51 X and H 41 X
• Supports 24 existing HIQuad I/O modules
• Per H51X system up to 16 1/0 extension racks with up to 256 1/0 modules
• Per H41X system with up to one I/O extension rack with up to 281/0 modules
• Flexible I/O architecture mono and redundant loops can be mixed, which reduces footprint
• Reload of application, hardware and communication
• Reduced cycle times
• Faster REAL calculation
• Freedom of interference between F-CPU 01 and I/O modules Cross connection between modules increases system availability Multitasking with up to 32 application programs
• Improved diagnosis for faster maintenance and troubleshooting
• Improved haptics
• Extended system bus
• Better EMC stability
A new communication module F – COM 01 comes included with HIQuad X . It supports the consistent HIMA security concept. With HIQuad X, you have new opportunities as well as well – known existing communication paths . Additionally , HIQuad X increases the availability of the communication to redundant third-party systems. You can connect HIQuad X systems to each other via the HIMA safety protocol SafeEthernet . Also, HIMax, HIMatrix systems and RIOS can be combined safely . To establish a s afety -related connection to existing HIQuad installations , the protocol HIPRO-S V2 is implemented in HIQuad X.
